FMX15 Stage Monitor

FMX15 Stage Monitor

AED: 3000.00

2-WAY COAXIAL STAGE MONITOR

1200W PEAK CLASS-D AMPLIFIER

MAX SPL 128 dB

FREQUENCY RESPONSE [-10dB]: 52 - 19.000 Hz

HF: 1x 1" - 1.3" v.c.

LF: 1x 12" - 2" v.c.

WEIGHT: 13.9 kg (30.6 lbs)

Category: New Arrivals

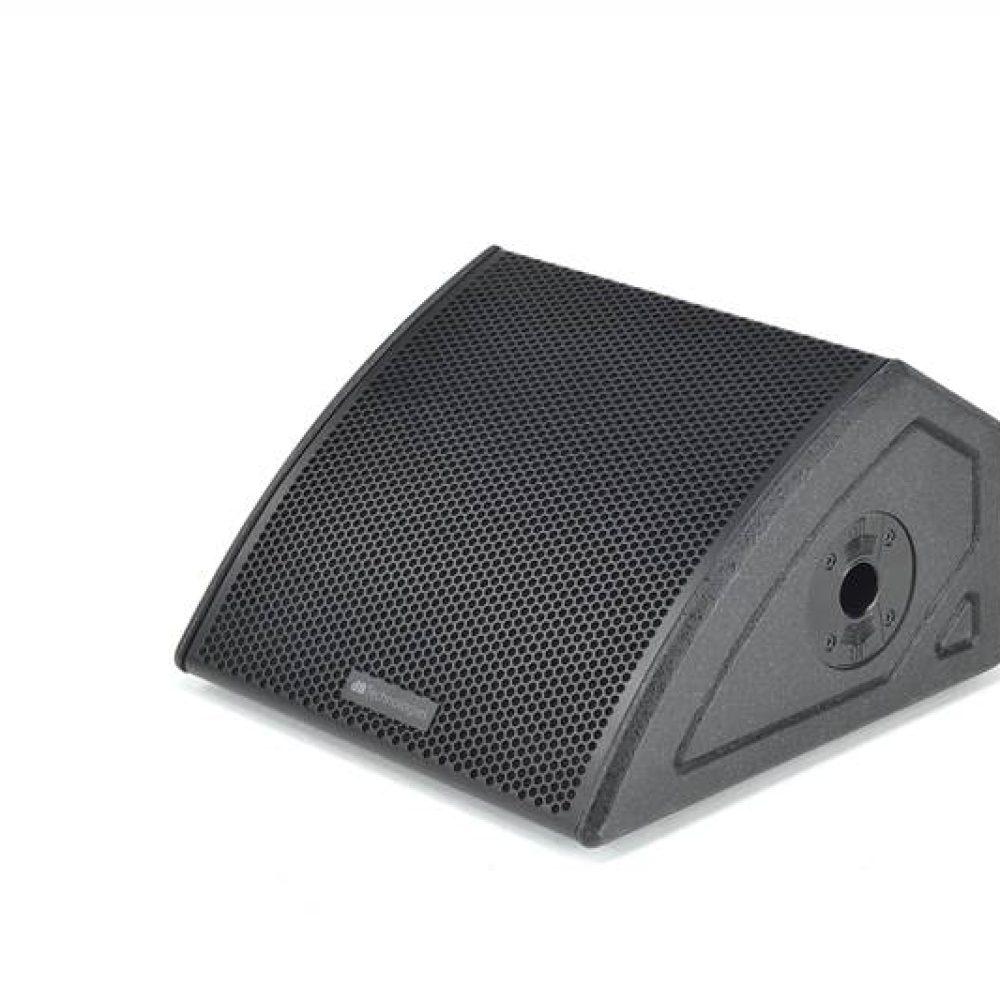

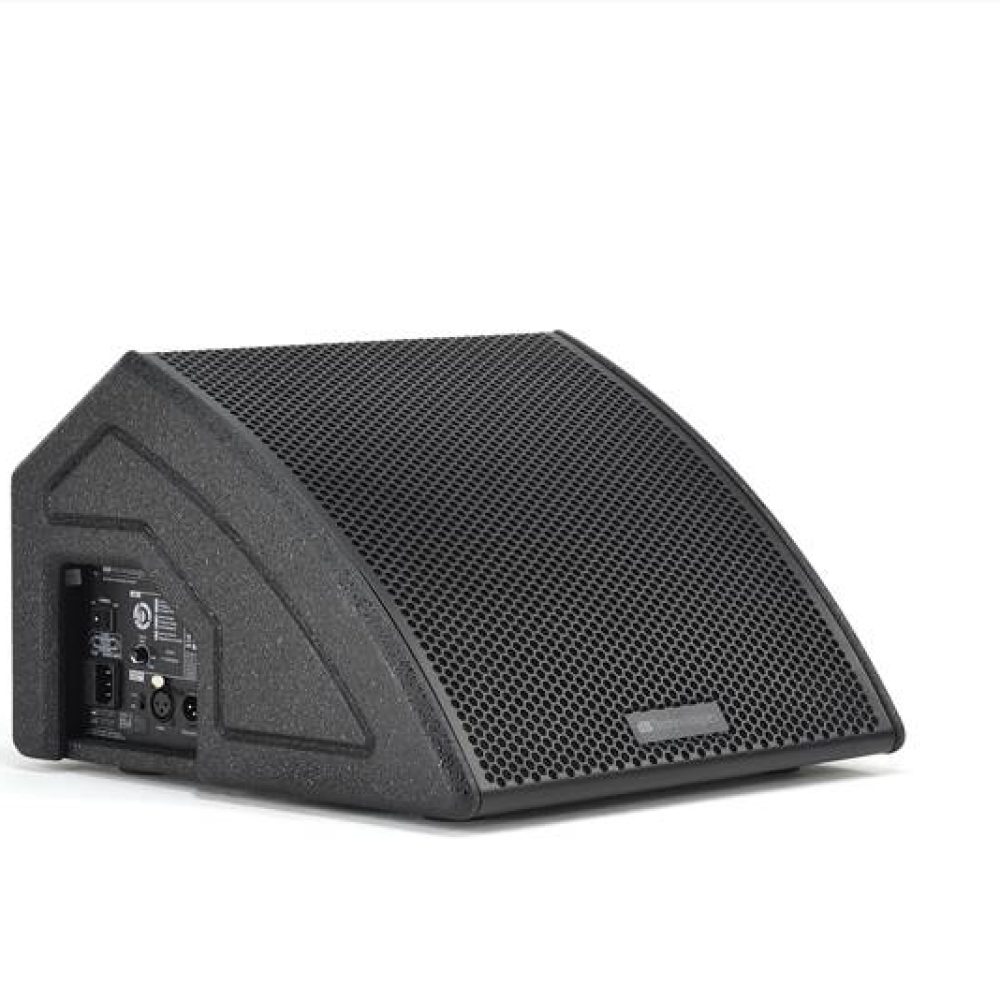

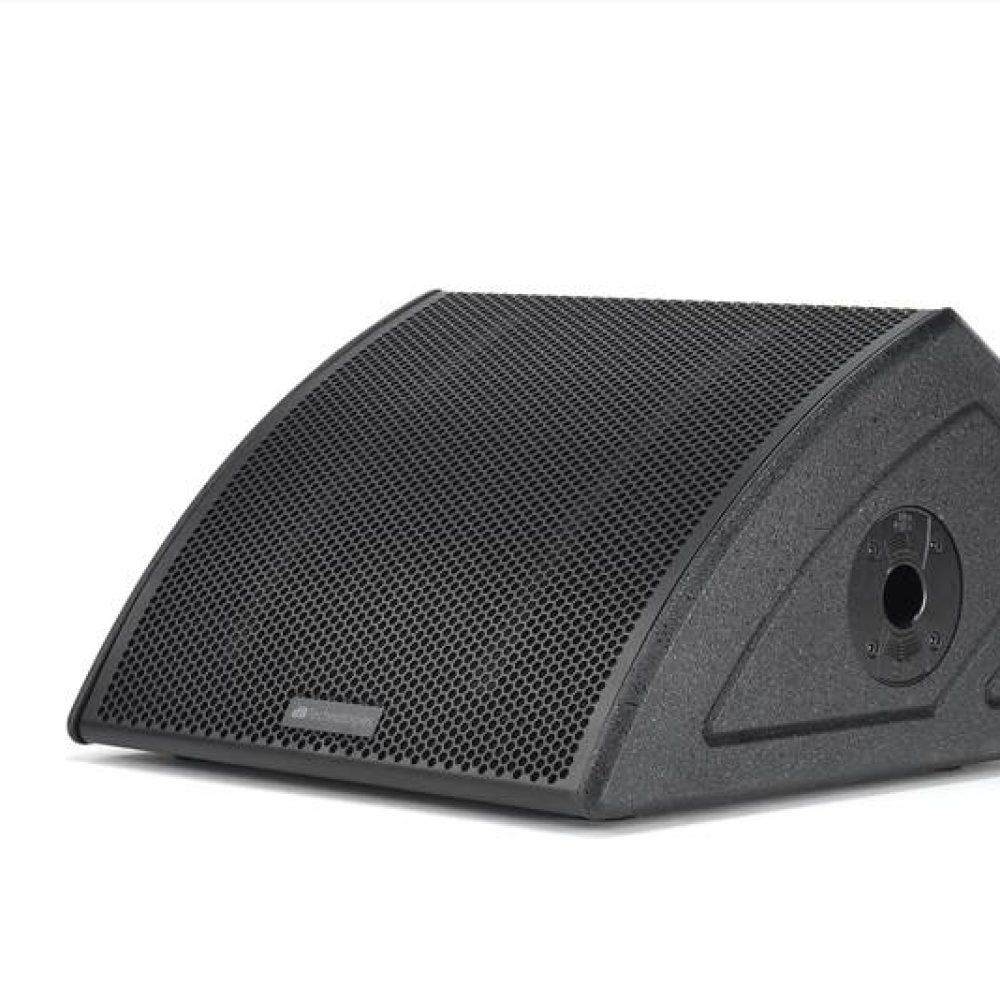

FMX is an active 2-way coaxial stage monitor series encompassing 3 models (10,12 and 15”) equipped with 400 RMS (for FMX 10) or 600 RMS (for FMX 12 and 15) Class D amplifiers.

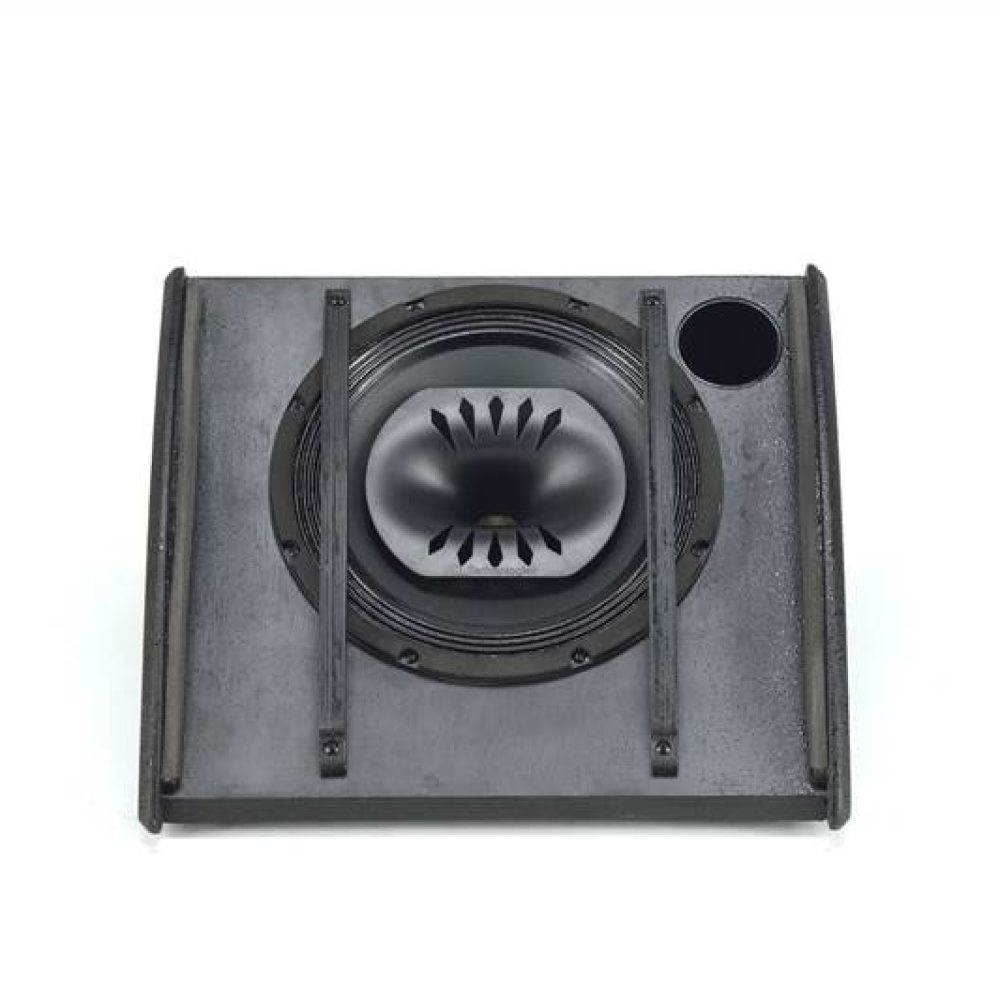

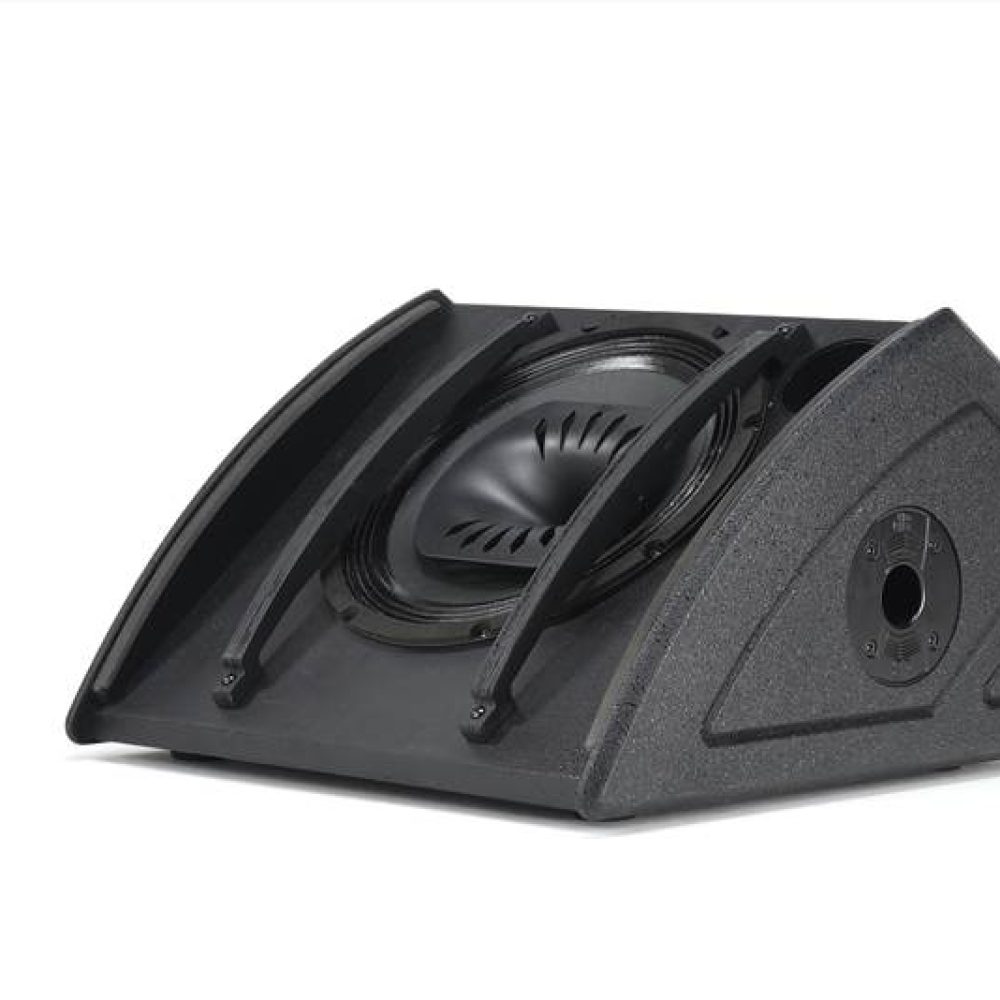

The wedge’s coaxial acoustic design, together with its custom horn design and its advanced DSP featuring linear phase FIR filters, provides an even, highly-intelligible sound.

In facts, FMX’s horn design allows a very precise dispersion pattern (60Β° horizontal and 90Β° vertical) which can be easily reversed (90Β° horizontal and 60Β° vertical) by rotating the horn, adapting the wedge to the habits of the user.

Moreover, 8 on-board presets optimize EQ for different needs making FMX a skilful yet easy-to-use tool for performers of every kind.

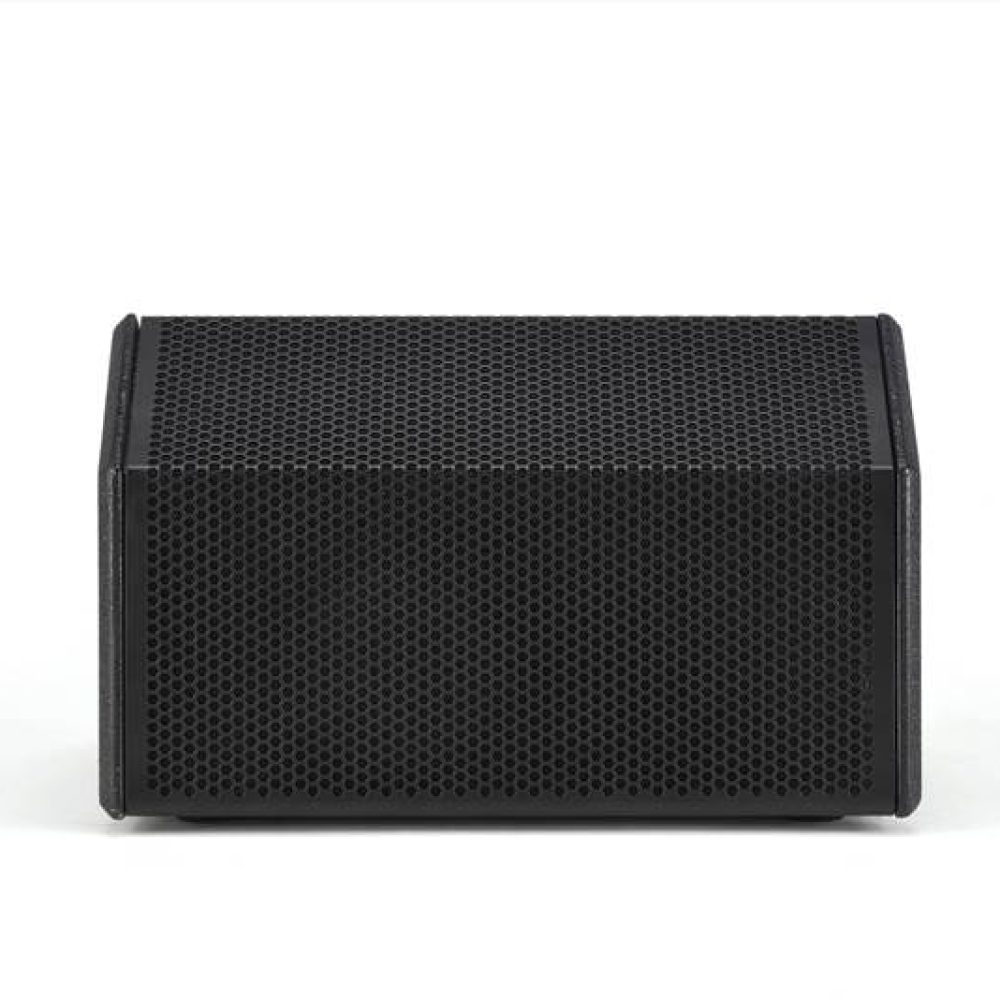

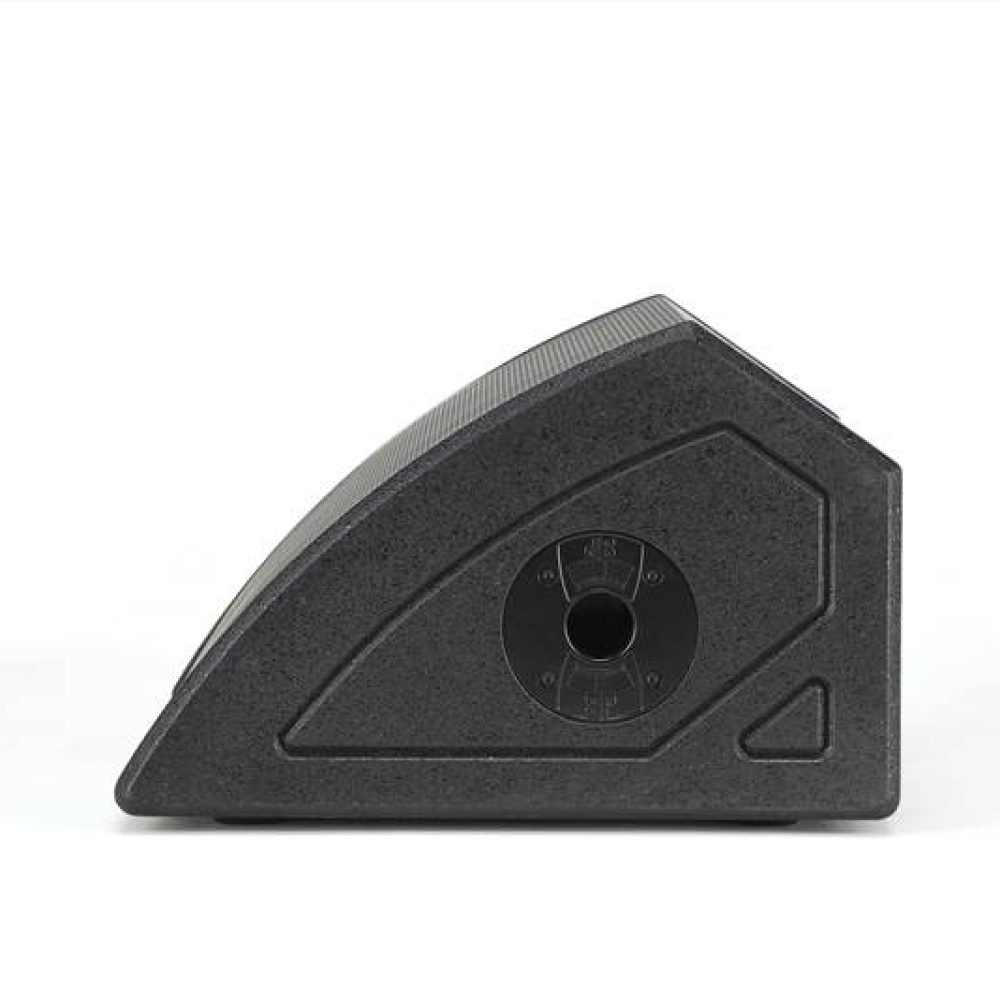

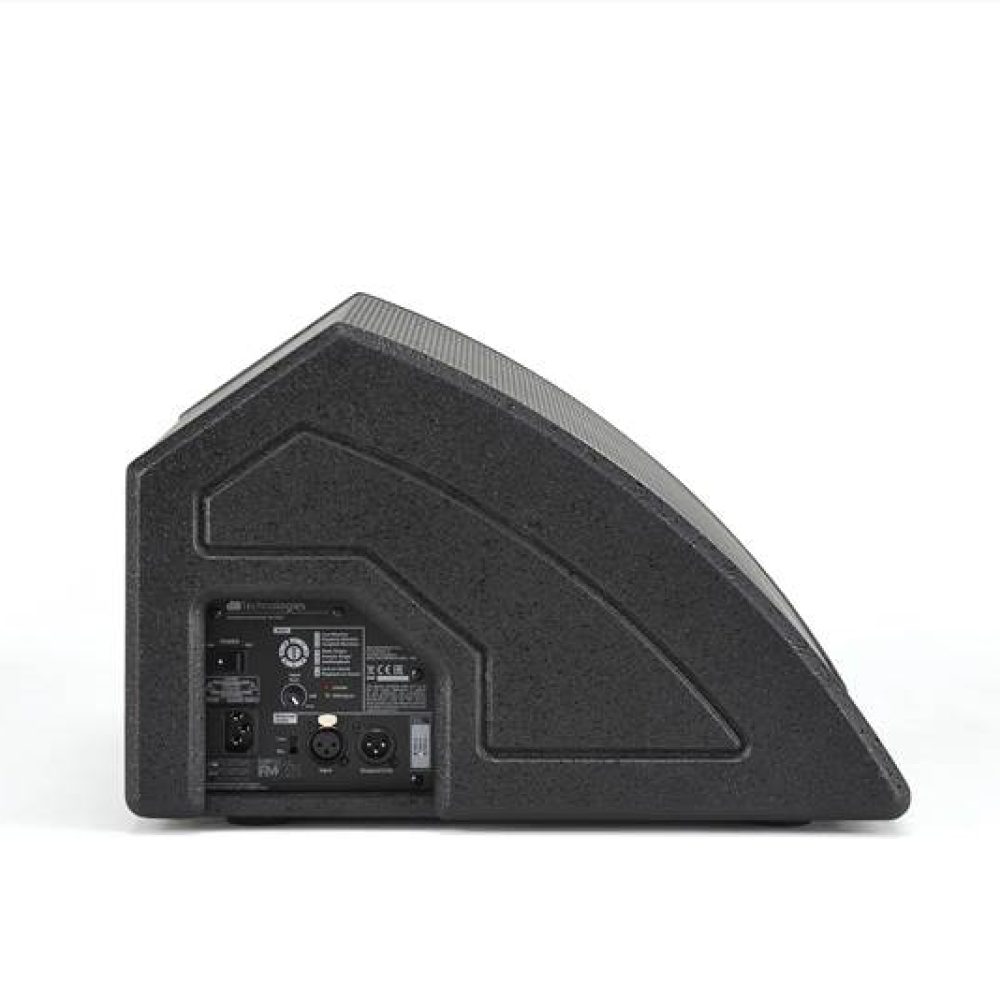

All wedges of the series feature a peculiar front-rear grille design, a single handle integrated on the bottom side of the plywood cabinet and a 36mm pole mount on side panel which further enhance FMX versatility.

Reviews

Be the first to review “FMX15 Stage Monitor”

Your email address will not be published. Required fields are marked *

Specifications

Technical Data
Speaker Type
2-Way Active Coaxial Stage Monitor

Β
Acoustical data
Frequency Response [- 10 dB]
46 – 19.000 Hz

Max SPL
128 dB

HF
1″, 1.3″ v.c.

Directivity
60Β°X90Β°

Horn
Rotatable

LF
15″, 2″ v.c.

Β
Amplifier
Amp Class
Class D

Peak Power
1200 W

Β
Processor
Controller
DSP 28/56 bit

AD/DA Converter
24 bit/48 kHz

System Presets
8 presets

Limiter
Peak, RMS, Thermal

Advanced DSP Function
FIR Filters

Crossover Frequency
1740 Hz

Slope LF/HF
24 dB/oct

Β
Mechanics
Housing
Plywood

Housing Design
Multifunctional

Handles
1 integrated on bottom side

Pole mount
36 mm

Width
580 mm (22,83 in)

Height
340 mm (13.38 in)

Depth
500 mm (19.68 in)

Weight
16.9 kg (37.2 lbs)
